Soap Information

Header Attributes Usage

Note

The npm package can be used to create SOAP requests. For more detailed information, click Soap Npm Package

For Soap requests, a usage can be made as in the figure below.

• You can add the following field to the request:

• The namespace specified in the overrideRootElement is added to root tags as a prefix.

• With the $attributes specified with attributesKey, the desired attributes are given in the header.

Example:

• In Security, attributes can be added with $attributes as follows.

• The written wsse namespace information is also added to the first level elements.

Http Headers

Bearer Token Usage

Package	Version
symphony	@stechquick/symphony@0.3.4
symphony-cli	@stechquick/symphony-cli@0.5.30

• In SOAP usages, when it is necessary to use httpHeaders within requests, the following usage can be applied.
• An example, In the SOAP request, the httpHeaders parameter is added as an Authorization key-value pair.

               httpHeaders: {
                "Authorization": "eyJhbGciOU5ENVNpZGNvIn0"
            }

• It can also be used by retrieving it from the incoming request in the following way.

Ltpa Token Usage

• The following code structure can be used to obtain the Ltpa Token.
• The LTPA token can be obtained by adding the "$value" parameter. Example usage is provided below.

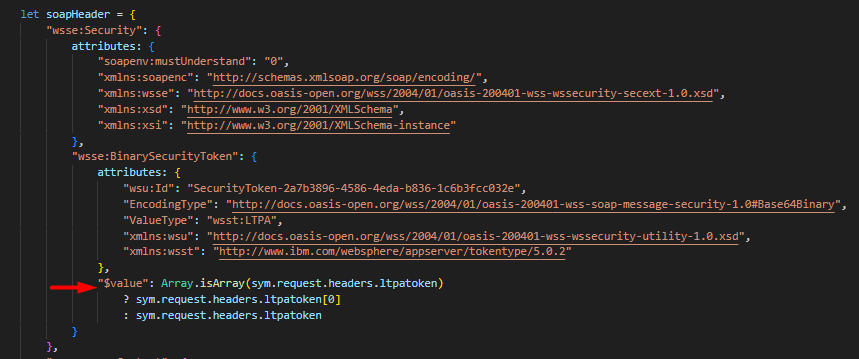

• The example code block, demonstrating the usage of Security, Consumer Context, and Ltpa Token within the Soap Header, is as follows:

        let soapHeader = {
            "wsse:Security": {
                attributes: {
                    "soapenv:mustUnderstand": "0",
                    "xmlns:soapenc": "http://schemas.xmlsoap.org/soap/encoding/",
                    "xmlns:wsse": "http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-secext-1.0.xsd",
                    "xmlns:xsd": "http://www.w3.org/2001/XMLSchema",
                    "xmlns:xsi": "http://www.w3.org/2001/XMLSchema-instance"
                },
                "wsse:BinarySecurityToken": {
                    attributes: {
                        "wsu:Id": "SecurityToken-2a7b3896-4586-4eda-b836-1c6b3fcc032e",
                        "EncodingType": "http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-soap-message-security-1.0#Base64Binary",
                        "ValueType": "wsst:LTPA",
                        "xmlns:wsu": "http://docs.oasis-open.org/wss/2004/01/oasis-200401-wss-wssecurity-utility-1.0.xsd",
                        "xmlns:wsst": "http://www.ibm.com/websphere/appserver/tokentype/5.0.2"
                    },
                    "$value": Array.isArray(sym.request.headers.ltpatoken)
                        ? sym.request.headers.ltpatoken[0]
                        : sym.request.headers.ltpatoken
                }
            },
            "p:consumerContext": {
                attributes: {
                    "xsi:type": "p:BranchContextType",
                    "xmlns:xsi": "http://www.w3.org/2001/XMLSchema-instance",
                    "xmlns:p": "http://isbank.com/Technical/EA/Header/Schema/V1"
                },
                "lang": "tr",
                "consumerCode": "NAR.BKTUIALA",
                "channelCode": "branch",
                "ipAddress": sym.request.body.ipAddress,
                "workstationName": sym.request.body.workstationName,
                "organizationUnitCode": sym.request.body.organizationUnitCode
            }
        };

Array Usage

Package	Version
symphony	@stechquick/symphony@0.3.3
symphony-cli	@stechquick/symphony-cli@0.5.30

• The example usage for an array within SOAP requests is provided below. Let the request be as follows

    {
        "customerNumber": ["163288722","163141033"],
        "includeAccounts":true
    }

• In Symphony, the following usage can be applied for this request.

  let soapBody = {
            "tns:customerNumber": sym.request.body.customerNumber,
            "tns:includeAccounts": sym.request.body.includeAccounts,
    };
