Data Instance Context

The Data Instance is where your workflow keeps its business data. It is the container that carries all the information your process needs from start to finish.

Data Instance

Think of the Data Instance as a form that follows your process around. Every field you need -- customer names, request amounts, approval decisions -- lives here and is available at every step.

For example, a loan approval workflow might store:

• customerName -- the applicant's name
• requestAmount -- how much the applicant is asking for
• approvalStatus -- pending, approved, or rejected
• department -- which team is handling the request

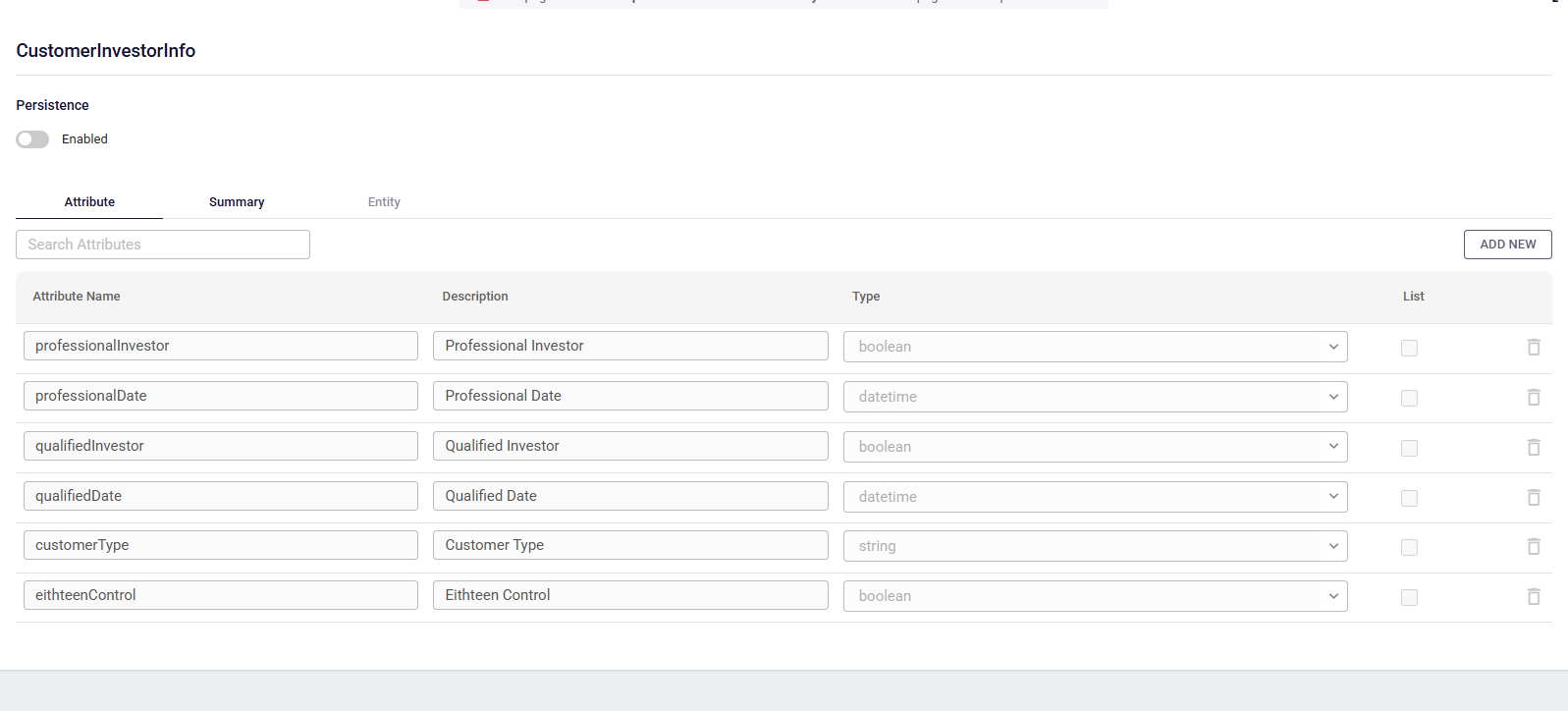

Linking a DataType to Your Workflow

To define what fields your Data Instance contains, you link it to a DataType model in the workflow's store configuration. The DataType is like a template: it lists all the fields and their types.

To set this up:

1. Open the workflow store settings.
2. Find the dataInstance entry in the context section.
3. Set its objectID to your DataType model.

Once linked, you get:

• Autocomplete in the expression editor -- field names are suggested as you type
• Validation of your data mappings between steps
• A clear, documented structure that other team members can understand

Reading and Writing Data Instance Values

In Expressions

You can reference Data Instance fields anywhere expressions are supported:

context.dataInstance.customerName
context.dataInstance.requestAmount
context.dataInstance.nestedObject.property

Data Flow

Stage	What Happens
Process starts	The Data Instance is created with the initial input data.
During execution	Each step can read and modify the Data Instance. Changes are saved automatically between steps.
Process completes	The Data Instance is archived with the process for future reference.

You do not need to manually save or load the Data Instance. Studio handles this for you at every step transition.

Data Instance vs Process Instance

It helps to understand the difference between these two:

	Data Instance	Process Instance
What it holds	Your business data (the fields you define)	System information (status, tasks, SLA, participants, files, notes)
Who defines it	You, through a DataType model	The workflow engine
Can you change it	Yes, in Function steps and mappings	Only certain fields (status and priority are managed by the engine)
Example fields	customerName, requestAmount, approvalStatus	processId, businessKey, status, taskList, files
