Step 5 — Action

For the full editor reference, see the Action Editor.

Its Place in Our Scenario

In this step we build the submit action. (You will add the checker's approve action later in the Workflow step the same way.)

Action	Function	Privilege	Used in which step
submit	submitFunc	submit_record	The "Submit" button on the maker's task

info

An action can hold several privileges — e.g. approve might also require view_record. Access Management evaluates these with AND: the user must hold all privileges.

Prerequisite: A Workflow Function

The action's Function field is required, so a workflow function the action will call must exist before you create the action.

• From + Add New → New Function → Workflow Function.
• Name the function: submitFunc.
• Press CREATE to make an empty function. (Filling in the function is out of scope here; we just want to show the action can be bound to a function.)

info

Function naming: choose a name with the same semantics as the action (e.g. submitFunc, approveFunc). You define the actual business rules (create the record, write to DB, etc.) in the workflow function editor.

Step by Step

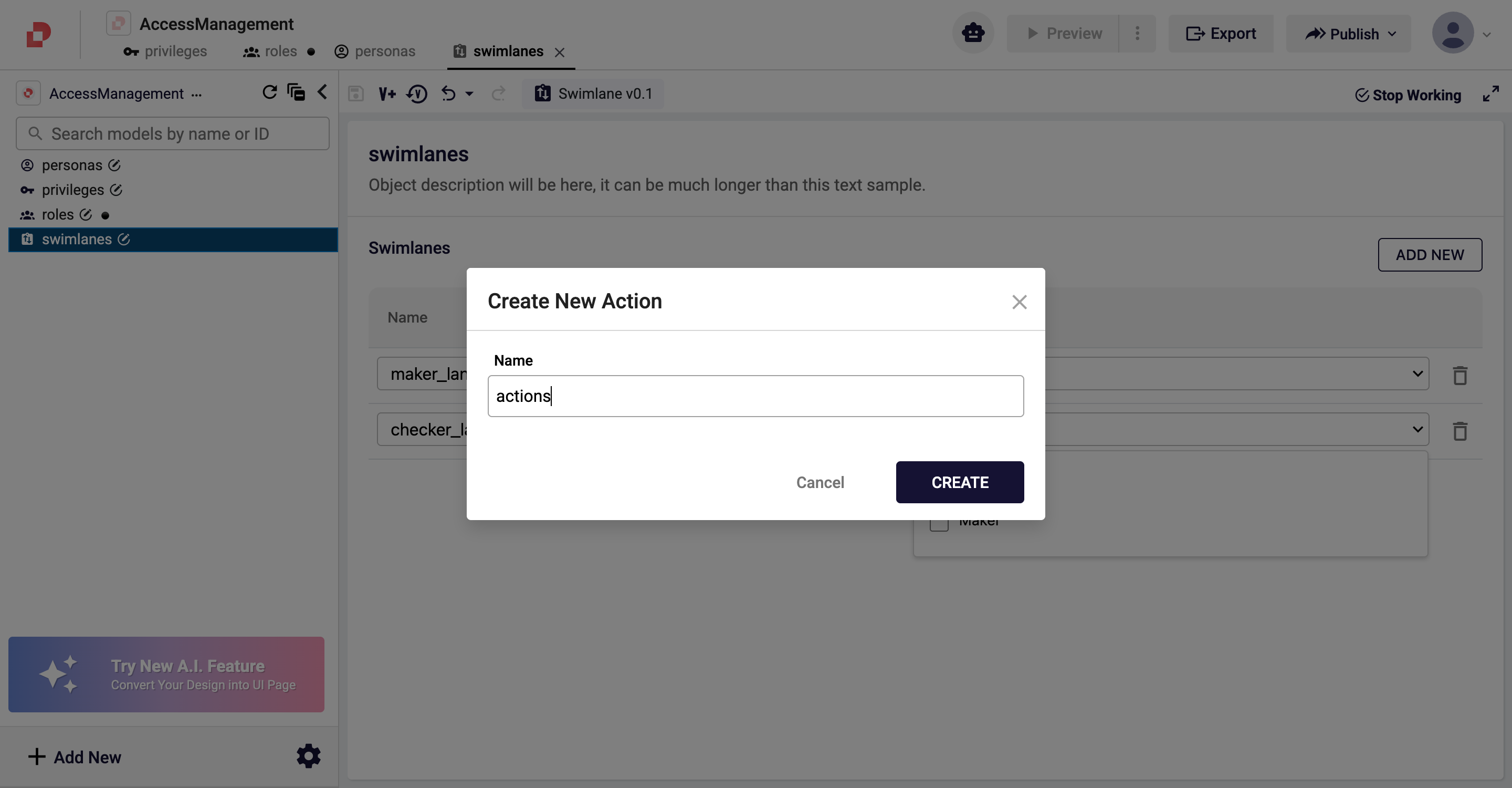

1. Add New → New Action

From + Add New, click New Action. Name the model — usually actions.

Confirm with CREATE → the empty Action Editor opens.

2. Add the submit action

In the list view, press ADD NEW → the action detail page opens. Its fields:

Field	What to enter	Required
Name	The unique action name	✓
Description	Explanation (shown in Studio selection lists)	—
Function	The workflow function that runs when the action is pressed	✓
Form	The qjson form the action opens/updates	—
Privileges	The privileges required to press the action	—

For submit:

1. Name = submit
2. Description = Create the record and send it to the checker
3. From the Function dropdown, choose submitFunc (created above).
4. From the Privileges dropdown, tick submit_record.

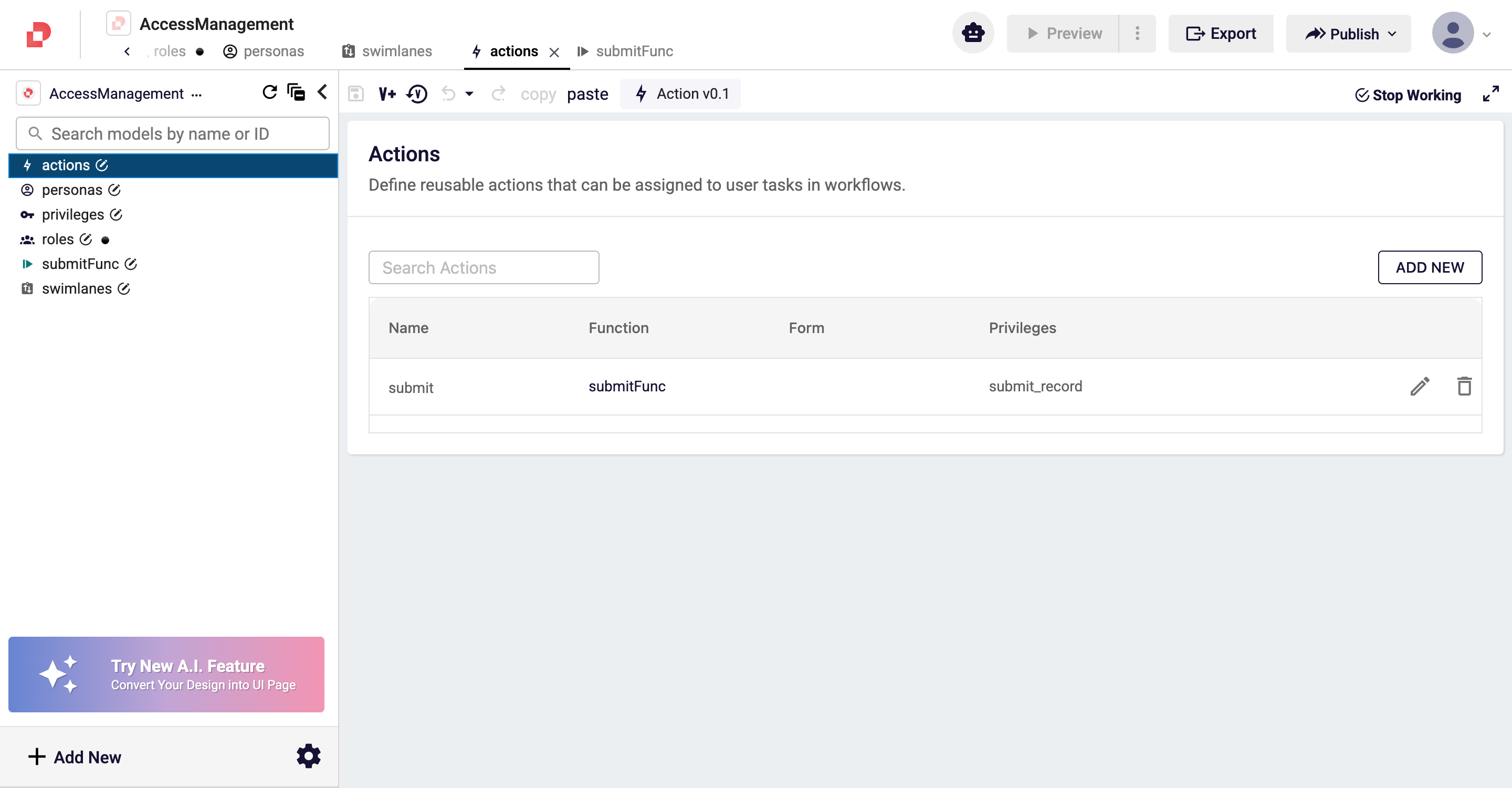

3. Save

Click the disk icon in the toolbar, enter a short summary, and confirm with SAVE CHANGES.

info

Add the approve action the same way: first create a workflow function named approveFunc, then in the action detail set Name = approve, Function = approveFunc, Privileges = approve_record. We bind both actions to User Tasks in the Workflow step.

Good to Know

• Action-level privileges use AND logic: with several privileges, the user must hold all of them. Otherwise the operation is rejected on press even if the button looks active.
• Privilege assignment is not mandatory: an action with no privilege can be pressed by anyone. Access Management skips the check when no privilege is set.
• Action vs Function: the action is the "button definition"; the function is the "business rule that runs when pressed". The privilege check runs before the function, so an unauthorized user cannot trigger it.
• The Form field points to the qjson form the action opens. The next step covers form privileges; you can bind that form to this action as its Form.
• Deleting a function breaks the action: the action references the function. Check usages before deleting a workflow function.

So Far in Our Scenario

Done	Step
✅ 3 privileges	1
✅ 2 roles (Maker, Checker)	2
✅ 2 personas (MakerUser, CheckerUser)	3
✅ 2 swimlanes (maker_lane, checker_lane)	4
✅ 1 workflow function (submitFunc) + 1 action (submit) — function and privilege bound	5

                       privilege ────────────────────────────────────┐
                       (submit_record)                                │
                                                                      │
button (action)  ──→  pressing runs the function                      │
                                                                      │
  submit   ──→  submitFunc  ──→ create record    ←  AND check  ───────┘

Next Step

Next we define form (qjson) privileges. Opening a form can also be authorized — if a user cannot even enter the form, the buttons inside it are never checked.
